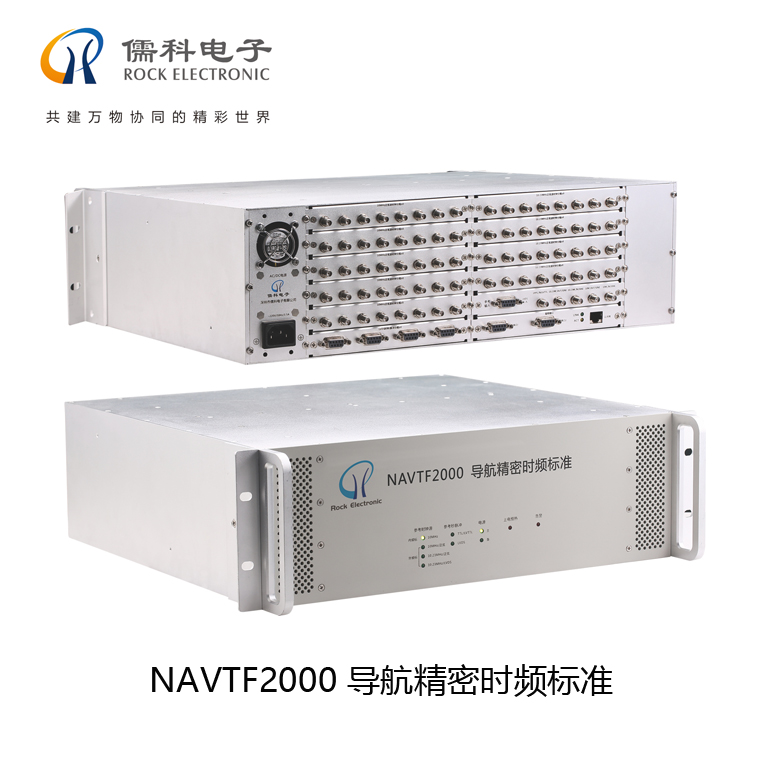

NAVTF2000 Navigation Precision Time Frequency Standard
NAVTF2000 Navigation Precision Time Frequency Standard
? ? ? ? ?NAVTF2000 navigation precision time-frequency standard adopts backplane, modular design and built-in ultra-high stable constant temperature crystal oscillator. It can support high-precision GPS and Beidou 2nd generation dual-mode as the timing reference, optimize the external reference frequency source signal, improve the short-term stability and phase noise performance indicators, and output customized signals such as 1~400MHz, PPS, IRIG code and NTP.
? ? ? ? ?Modular design makes it convenient for users to expand and upgrade services and reduce maintenance costs.
? ? ? ? ?Multi-tracking architecture, while supporting GPS, Beidou, GLONASS and other satellite signals and standard frequency reference input to ensure the normal operation of the system.
? ? ? ? ?Built-in ultra-high stability OCXO, optimized external reference source indicators.
? ? ? ? ?Can be customized to output ultra-low phase noise 1~400MHz signal (currently available: 5MHz, 10MHz, 10.23MHz and 100MHz, etc.).
? ? ? ? ?Each single board can support 8 channels of frequency or timing output, with a total of up to 64 channels of output.
The main function:
1）超穩、低相噪輸出
2）支持北斗、GPS L1，L2
3）鎖相凈化銫鐘源
4）定時精度20ns
5）插箱式模塊化，雙電源設計
6）支持輸出：1～400MHz、PPS、IRIG-B、NTP
